Saddle connections and welding saddles
Be smart.

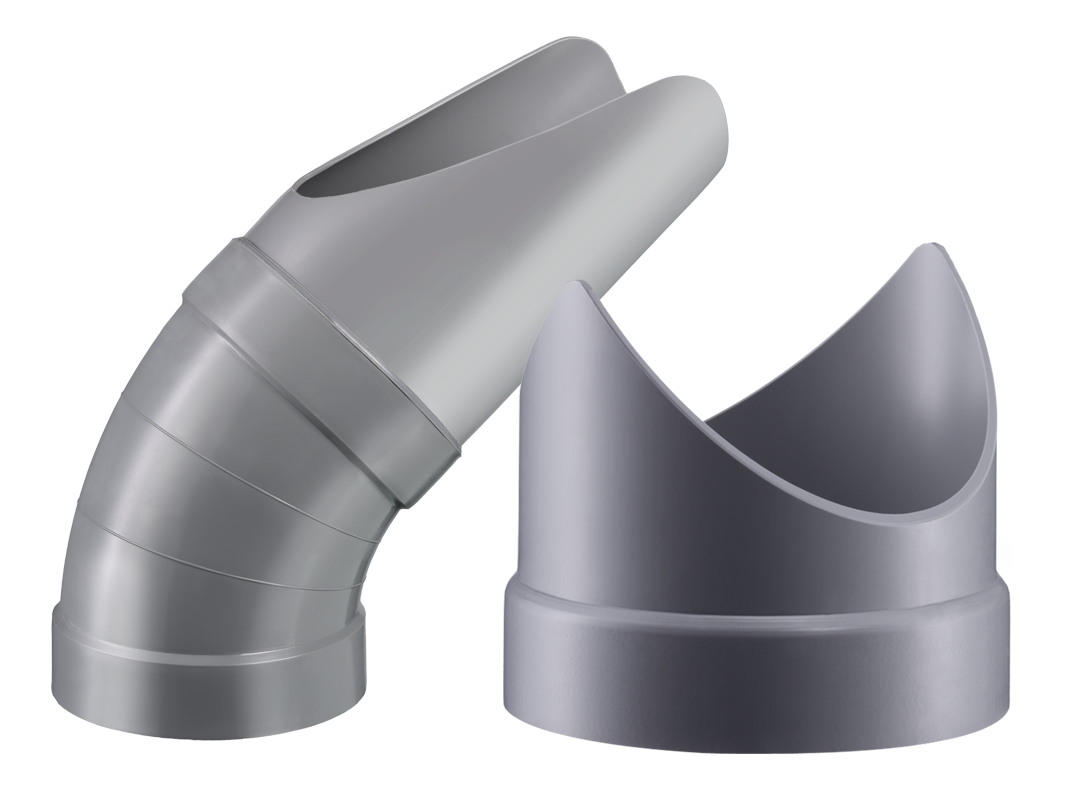

Beck saddle connectors and saddle pieces allow existing ventilation systems to be retrofitted without having to disconnect the main pipe or take the system out of operation. This is a decisive advantage in ongoing production processes, where downtimes can cause high costs. The precisely pre-formed contact surface of the saddle support adapts exactly to the curvature of the main pipe and ensures an absolutely tight connection after welding. The saddle connectors and saddle pieces are supplied as a finished unit and can be easily attached to an existing pipe - ideal for standardized extensions. This unique design not only saves time, but also reduces the risk of leaks at subsequently attached joints.

Our saddle connectors and saddle pieces are characterized by their flow-optimized design, which significantly reduces pressure loss in the system. Unlike conventional right-angled branches, the specially developed inflow geometry ensures a smooth transition and minimizes turbulence when branching off the air flows. The smooth transition from the main pipe to the branch reduces noise and prevents the build-up of particles at edges or transitions. This sophisticated design contributes significantly to the overall efficiency of the ventilation system and lowers operating costs by reducing energy consumption. Especially in large industrial systems with numerous branches, this effect adds up to significant energy savings.

Beck saddle connectors and saddle pieces are made from high-quality thermoplastic materials that offer exceptional resistance to aggressive and corrosive media. Depending on the area of application and chemical load, you can choose between different materials: PVC (up to 50°C) for general applications, PPs for flame-retardant versions, PP for elevated temperatures (up to 80°C), PE for lower temperatures (down to -20°C), PPs-el for electrostatic dissipative properties and PVDF for the highest chemical and thermal requirements (up to 120°C). This variety of materials makes Beck saddle connectors and saddle pieces the ideal component for ventilation systems in chemical laboratories, pharmaceutical plants, electroplating plants, the semiconductor industry and other demanding environments in which metallic components would corrode quickly.
